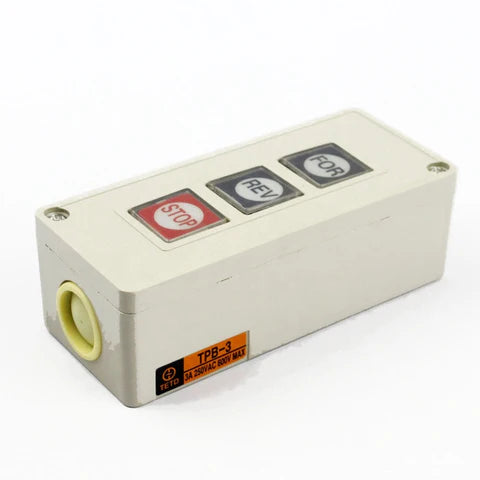

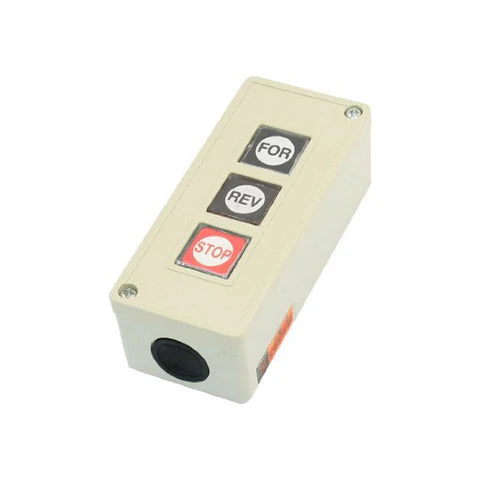

Forward Reverse Stop Momentary Push Button Switch TPB3 in Pakistan

This switch can control three phases motor directly, no need to use magnetic switch.
Screw terminals ensure easily wiring.
Widely used in mechanical equipment., textile machinery, etc.

Specification:

• Product Name:                        Push Button Switch
• Type:                                        Momentary (for/rev/stop)
• Voltage & current:                   AC 250V 3A  max.
• Voltage:                                   600V
• total Size (approx. ):                117 x 50 x 39 mm / 4. 6 inch x 2 inch x 1. 5
• Mounting Hole diameter:        5mm/ 0. 2 inch  mounting Hole center
• Distance:                                  86 x 35mm/ 3. 4 inch x 1. 4 inch (L*w)
• Color:                                       gray
• material:                                   metal plastic
• Net weight:                              143g
• Max. Voltage:                           600V
